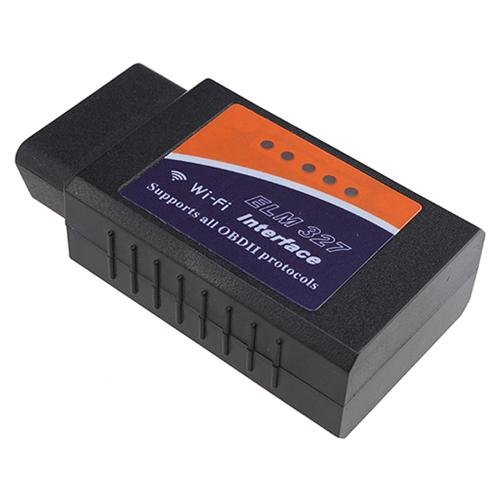

<< Product Catalog · Cable,Connector for ELD1 · OBDⅡ(J1962) Connectors · OBD Connectors · 1.5 Series Auto Connectors · OBDⅡ(J1962) Cables · J1939/J1708 Series · DB Series · AUTOCOM Series · OBDⅡ(J1962) Enclosure · Converter · ELM327 · AUDI/VW Series · BENZ Series · BMW Series · CHRYSLER Series · FORD Series · FIAT Series · GM/DAEWOO Series · HONDA Series · HYUNDAI Series · ISUZU Series · IVECO Series · KIA Series · MITSUBISHI Series · MAZDA Series · MAN Series · NISSAN Series · OPEL Series · PSA/CITROEN/Peugeot Series · RENAULT Series · SUBARU Series · SCANIA Series · TOYOTA Series · VOLVO Series · SKODA Series · Break Out Boxes << Contact Location:2F, 2Building, LaoBing Industrial Park,TieZai Road, Xixiang, Bao’an District, Shenzhen, China 518133 Phone :　+86 755 2734 8805 Fax :　　 +86 755 8146 2346 E-Mail : sales@cactus-electronics.com	<<Details <<Back to List   ELM327 with wifi 【501007】 Product Description： Functions: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database). Clear trouble codes and turn off the MIL ("Check Engine" light) Display current sensor data, including: Engine RPM Calculated Load Value Coolant Temperature Fuel System Status Vehicle Speed Short Term Fuel Trim Long Term Fuel Trim Intake Manifold Pressure Timing Advance Intake Air Temperature Air Flow Rate Absolute Throttle Position Oxygen sensor voltages/associated short term fuel trims Fuel System status Fuel Pressure Many others... WI-FI OBD AUTO CHECKER is capable of communicating with vehicles which adopt following protocols: ISO 9141 ISO 11898(aka. CAN) ISO 14230(aka. KWP2000) ISO 15765(aka. CAN) SAE J1939 CLK is able to detect and interpret these protocols automatically. It also provides support for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, iPhone, iPod touch, iPad and so on). There are plenty of software packages available, which are fully compatible with CLK. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc. You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained. CLK is measuring only 2.7 x 1.25x 0.9 inches, and it comes attached with a 6 ft OBDII cable for easy installation. It also comes included with a power switch built-in to prevent the need for having to constantly disconnect your unit from the OBDII port. It is compatible with 1996 and later vehicles. Connecting to your iPhone / iPod touch is made by WIFI connection in adHoc mode. Following are some of the parameters which could be read from the vehicle: Vehicle Speed RPM Fuel Consumption* Engine Coolant Temp Fuel Pressure Calculated Engine Load Throttle Position Intake Manifold Pressure Air Intake Temp Timing Advance Mass Air Flow Fuel Level Barometric Pressure EVAP System Vapor Pressure Fuel Trim Description: Wifi OBD VGATE Technical Specifications SSID: CLKDevices IP: 192.168.0.10 Subnet: 255.255.255.0 Port: 35000 Range: 50 ft (Line of sight) Antenna: Internal Power Consumption: 0.75 Watts (With Power Switch) Wifi Standard: 802.11a/b/g Operating Temperature: -15 to 100 Deg Celsius Plastic: Automotive Grade Physical Dimensions: 2.75 x 1.25 x 1.2 inches Packing Including: 1 * Wi-Fi ELM327 1 * CD with software
